Ductless Design:
These are simple to install!
Ductless mini split air conditioner with heat pump and dehumidifier. Please scroll down for details

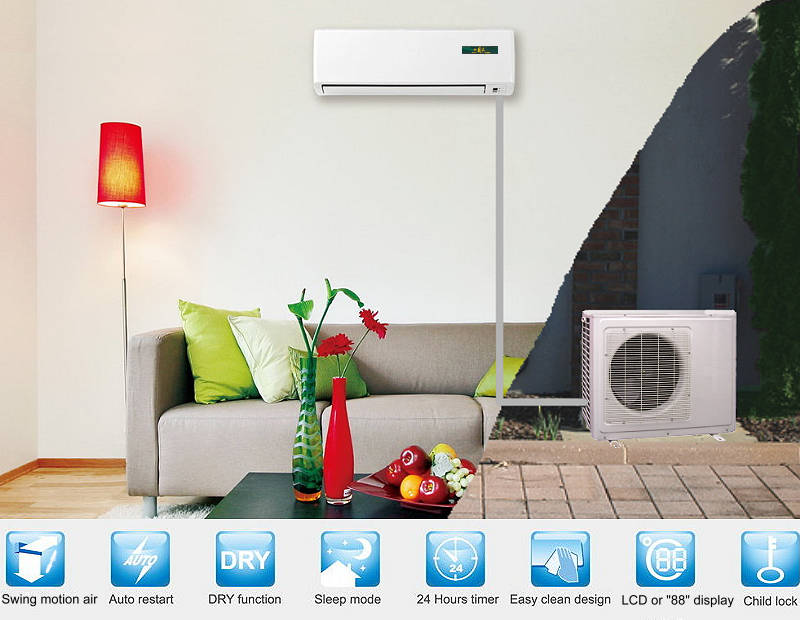

Typical indoor/outdoor unit location

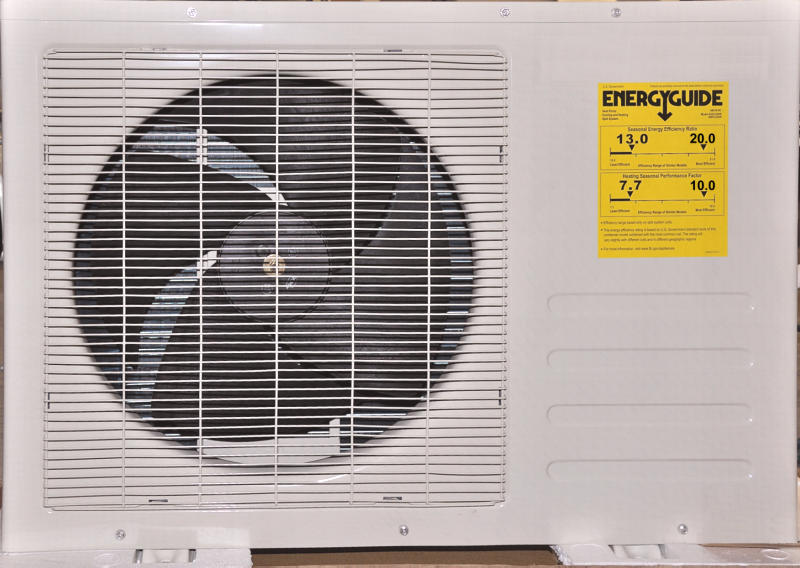

Outdoor unit all models

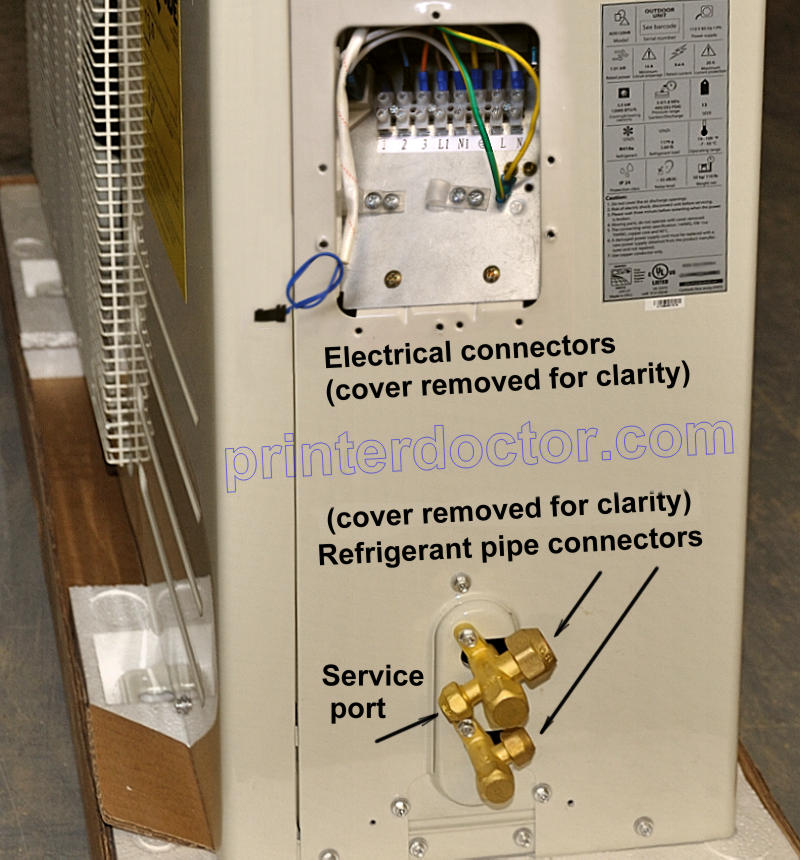

Typical connections on the outdoor unit on all models

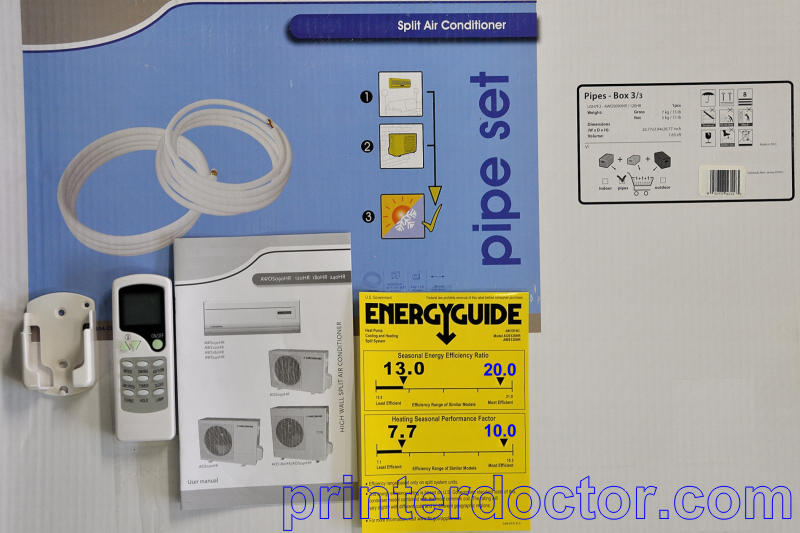

Indoor unit and accessories model "Haier"
Haier 9000 BTU regular price: 889.99
Sold out
Haier 9000BTU AC/HP
9000BTU Pridiom iNVERETER Regular price: $1099.99
Sale price: $991.00
9000BTU iNVERETER
25 ft cooper line set for Haier 9000 BTU
Sale price: 98.00
25ft copper line set
We also offer more advanced high efficient
iNVERTER air conditioners
13 SEER 9000 BTU ductless mini split air conditioner/heat pump
These UL listed mini split systems are perfect alternative to the window or portable AC. These systems do not require duct work and can be installed almost anywhere: kitchen, living room, garage, attic, basement, work shop, new addition, etc. In addition to cooling they provide dehumidification 3.2 to 5.2 pt/hr and heat in mild weather conditions (up to 27F outdoor temperature). Systems shipped precharged with environment friendly R410a refrigerant. Included installation guide
sample(PDF)
Product specifications:
Cooling/heating capacity BTU 9000, 300-450 sq ft room, sound level dB high/medium/low 45/42/39
Cooling/heating capacity BTU 12000, 400-600 sq ft room, sound level dB high/medium/low 45/42/39
Cooling/heating capacity BTU 18000, 550-850 sq ft room, sound level dB high/medium/low 47/45/43
Dehumidification pt/hr 3.2 9000 model, 3.6 12000 model, 5.2 18000 model
All models future ductless design, cooling SEAR 14 or 13, heating HSPF 7.7
Removable front grille, washable rigid mesh filter
Maximum operating current A 8 (120v 9000 BTU model), 10 (120v 12000 BTU model), 7.5 (230/208 v 18000 model)
Dimensions Indoor unit 31"x11"x7"/ 37x11x7/ 45x12x9, Outdoor unit 31x10x21/ 31x10x25/ 34x13x29
Fan speed indoor unit: high/medium/low 1300/1150/1000, outdoor unit 820 9000/1200 BTU models, 1050 18000 BTU model
Weight Indoor unit 25-31 lb, Outdoor unit 78-146 lb
Refrigerant connection: 4 flare nuts included; no soldering required
Save energy:
These systems 2 times
more efficient than
window AC and offer
Dehumidification and
Heat modes!
